The Play Whale Design Concept

In my last post I had decided to redevelop the abandoned Murraygate site as an urban pocket park. The site was challenging in that it did not receive much direct sunlight so that was something I was going to have to find a way to work around.

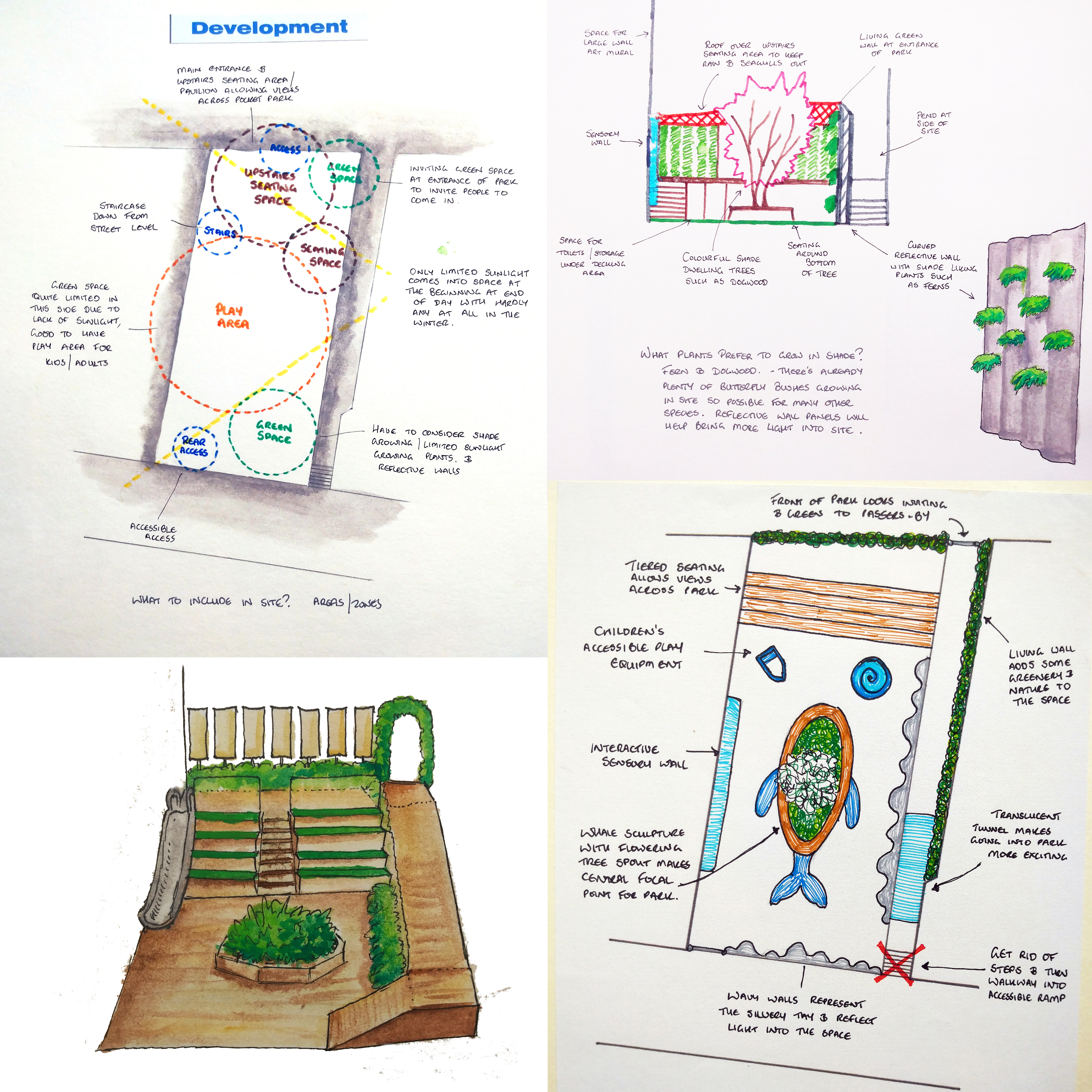

I sketched out some initial ideas and considered how I would lay the site out. I thought on how I could incorporate reflective surfaces to let more light in and what shade-dwelling plants such as ferns and blossoming dogwood trees I would use in the park space. I made the decision to convert the public side alley and stairs into an extended ramp so to make the parkette more accessible. Once I had come up with some initial design sketches I modelled these out using maquettes using my previously modelled 3D site plan to establish how the lack of light would affect the sapce.

sketchessketchmodels

As a theme I really wanted my park to have a strong connection with Dundee; something that would resonate with both locals and visitors alike, especially after the recent opening on the new V&A Design Museum nearby. I came up with the idea of using the Tay Whale as a concept, the skeleton of which is on display at Dundee’s McManus Galleries and would also give a nod to Dundee’s historic, lucrative whaling industry.

finalconcept

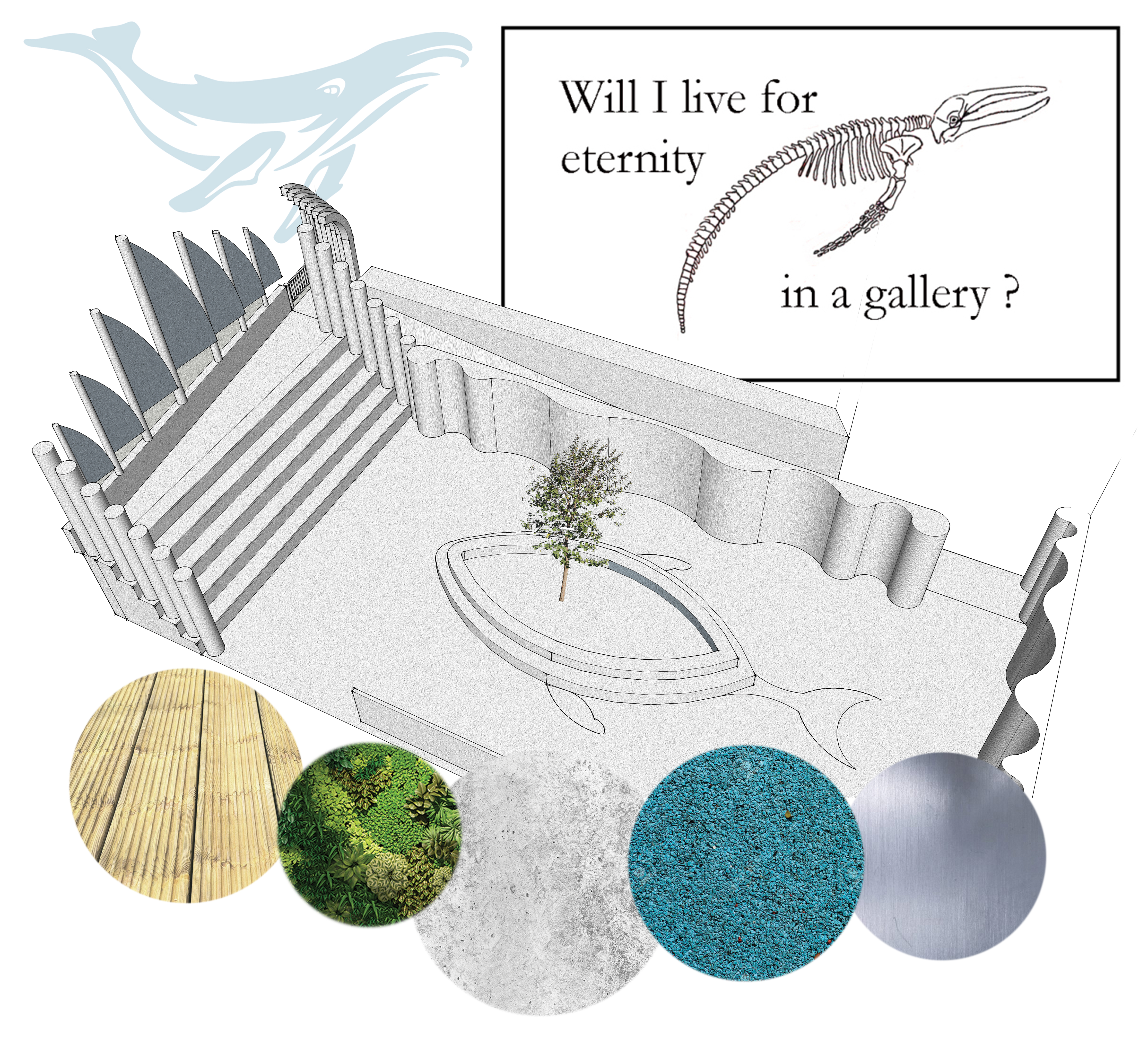

I created a CAD model of the site. As the space dropped down a level from the street, I turned this into plywood tiered seating area where people could relax and have lunch and look over the park space with a ramp to the side providing accessible access to the park area and the street behind. The floor of the park was made from teal coloured foam to represent the colour of the River Tay as well as being absorbent and provide a soft landing. Wavy aluminum walls reflect light in as well as act as fern planters and provide more greenery in the space. The main feature of the space is the whale shaped planter focal point in the centre of the park.

FINALparkrear2The space also includes a living wall facing the sun and an art mural on the opposite wall telling the story of the Tay Whale. The park also includes a whale themed sensory wall, some play equipment for children and exercise equipment for adults at the other end. Translucent sail like structures at the rear of the tiered seating area provide some privacy without block light light and views into the park. This structure also includes xylophone pipes to the side and acts as one of Dundee’s many whaling ships.

And that’s the story of how The Play Whale came to be. More images of my final design concept coming soon over on my website.

For the record I don’t agree with whale slaughtering but these were different times and the Tay Whale is a good example of the people of Dundee coming together in good community spirit.

whalelogo
